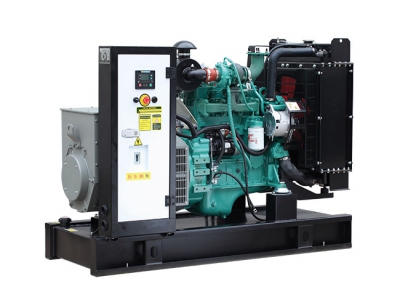

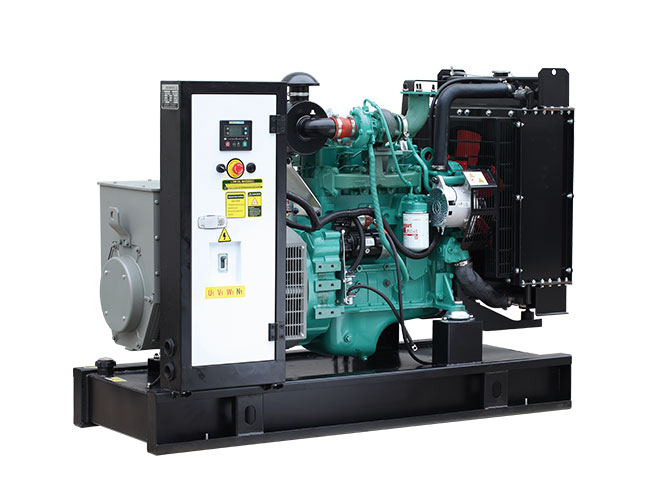

Chinese Series Open Type Gensets

Technical Data

Generator					Technical Data of Diesel Engine(50hz/1500rpm)						Alternator(50hz/1500rpm)
Model	Generator power(KW/KVA)				Fuel consumption		Cylinder	Displacement (L)	Compression Ratio	Asp.	Baihua
Model	Prime		Standby		g/kw.h	L/h	Cylinder	Displacement (L)	Compression Ratio	Asp.	Baihua
KBK15	10.8	13.5	12	15	264	3.11	4L	3.92	18.5:1	N/A	KB-164C
KBK19	13.5	16.9	15	19	264	3.73	4L	3.92	18.5:1	N/A	KB-164D
KBK25	18	22.5	20	25	243	5.4	4L	3.92	17.5:1	N/A	KB-184E
KBK30	21.6	27	24	30	246	6.37	4L	3.92	17.5:1	N/A	KB-184F
KBK38	27	33.8	30	38	211	5.96	4L	3.92	16.5:1	TC	KB-184H
KBK50	36	45	40	50	215	9.11	4L	5.88	16.5:1	TC	KB-224D
KBK63	45	56.3	50	63	215	9.11	4L	5.88	16.5:1	TC	KB-224E
KBK75	54	67.5	60	75	204	11.5	4L	5.88	16.5:1	TC	KB-224F
KBK85	61.2	76.5	68	85	194	18.26	6L	5.88	16.5:1	TC	KB-224G
KBK100	72	90	80	100	194	18.26	6L	8.3	16.5:1	TC	KB-274C
KBK125	90	113	100	125	204	19.2	6L	8.27	16.5:1	TC	KB-274D
KBK150	108	135	120	150	206.9	26.29	6L	8.9	15:1	TC	KB-274E
KBK188	135	169	150	188	206.9	35.05	6L	14	15:1	TC	KB-274G
KBK250	180	225	200	250	201	42.56	6L	10.8	16.1:1	TC	KB-274K
KBK313	225	281	250	313	198	51.24	6L	14	14.5:1	TC	KB-314D
KBK375	270	338	300	375	221	73	6L	14	14:1	TC	KB-314F
KBK438	315	394	350	438	225	85	12V	10.8	15:1	TC	KB-354C
KBK500	360	450	400	500	198	84.8	12V	10.8	16.1:1	TC	KB-354D
KBK563	405	506	450	563	198	93.2	12V	14	14:1	TC	KB-354D
KBK650	468	585	520	650	205	114.4	6L	14	14:1	TC	KB-354E
KBK688	495	619	550	688	202	123.6	6L	14	14:1	TC	KB-354FS
KBK850	612	765	680	850	199	140.47	6L	14	14:1	TC	KB-V6C
KBK1000	720	900	800	###	206	174.49	6L	18.9	13.9:1	TC	KB-V6D
KBK1100	792	990	880	###	214	201.41	6L	13	17:1	TC	KB-V6E
