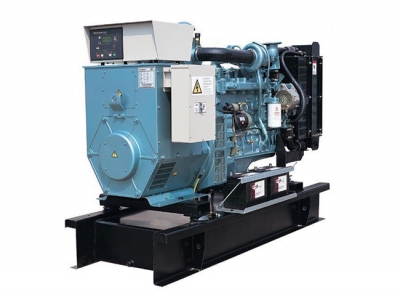

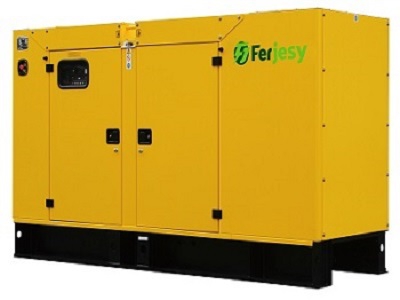

Cummins 60HZ Series Open Type/Silent Type Gensets

Cummins 60HZ Series Open Type/Silent Type Gensets
Cummins 60HZ Series Open Type/Silent Type Gensets 展示图片2
  • ModelC
  • Power200~2000kW

详细描述

Established in 1919, CUMMINS company headquarters in Columbus, Indiana, (USA) Cummins Inc. has 680 distributors in more than 137 countries and regions with over 5000 service networks around the world.  As the largest foreign investor in engine industry of China, Cummins possesses Chongqing Cummins Engine Co., Ltd and Dongfeng Cummins Engine Co., Ltd. It produces CUMMINS engines with globally uniform quality standard.
Advantages of Cummins engine: with the feature of superior performance, high combustion efficiency, fuel efficiency and can provide strong driving force, good durable(in use) economic, easy maintenance, and long continuous running,etc... As high power genset, it is widely used in industrial, railway, generating equipments and so on. The global service network of Cummins can provide customers with reliable and guaranteed service.It is welcomed by the most of customers

Gensets’ electric performance
Gensets compliance with all main standards, such as :GB/T2820,ISO8528,IEC34,VDE0875-N
Prime output power: 20kw-1600 kw(25kva-2000kva)
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21～IP23
Voltage regulation: AVR automatic control
Steady voltage regulation≤±1.0%
Transient voltage regulations≤+20%, －15%(60%ln，cosф≤0.4 lag)
Adjustable voltage range 95-105%Un
Sine waveform distortion rate at no-load, ≤5%,(line voltage)
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40℃
Relative air humidity: ≤ 90%



Technical Data

Generator Technical Data of Diesel Engine(60hz/1800rpm) Alternator(60hz/1800rpm)
Model Generator power(KW/KVA) Engine
model		 Engine power(kw) Fuel
consumption		 FERJESY Leroy somer Stamford mecc alte
Prime Standby Prime Standby g/kw.h L/h
C303 220 275 242 303 NT855-GA 257 283 220 66.52 FJ-274K LSA46.2L6   UC274J    EC038-3SN
C344 250 313 275 344 NTA855-G1A 287 317 210 64.48 FJ-314D LSA46.2L9  HC444C   EC038-1LN
C385 280 350 308 385 NTA855-G1B 313 347 210 77.33 FJ-314D LSA46.2L9  HC444D   EC038-2LN
C440 320 400 352 440 NTA855-G3 358 399 210 88.45 FJ-314E LSA47.2VS1 HC444ES EC038-3LN
C495 360 450 396 495 KTA19-G2 392 448 213 98 FJ-314F   LSA47.2VS2 HC444E  EC040-1S
C550 400 500 440 550 KTA19-G3 463 511 203 111 FJ-354C LSA47.2S4  HC444F  EC040-2S
C619 450 563 495 619 KTA19-G3A 507 563 203 121 FJ-354D LSA47.2S5    HC544C    EC040-3S
C660 480 600 528 660 KTAA19-G5 533 605 213 134 FJ-354D LSA47.2M7   HC544C  EC040-3S
C756 550 688 605 756 KTAA19-G6A 600 664 206 145 FJ-354E LSA47.2M8  HC544E    EC040-1L
C825 600 750 660 825 KTA38-G 679 747 193 154 FJ-354F LSA47.2L9   HC544F-S  EC040-1.5L
C990 720 900 792 990 KTA38-G2 809 895 214 204 FJ-404G   LSA49.1M65 LVI634C EC043-1SN
C1100 800 1000 880 1100 KTA38-G2A 915 1007 209 225 FJ-404H   LSA49.1L9    LVI634D EC043-2SN
C1238 900 1125 990 1238 KTA38-G4 1007 1112 207 245 FJ-404H  LSA49.1L10   LVI634E   EC043-2SN
C1375 1000 1250 1100 1375 KTA38-G9 1110 1220 199 259.87 FJ-404K LSA49.1L11 LVI634F   EC043-1LN
C1540 1120 1400 1232 1540 KTA50-G3 1220 1380 203 291 FJ-404Z LSA50.2M6  PI734A  EC043-1LN
C1733 1260 1575 1386 1733 KTA50-G9 1386 1657 203 331 FJ-454B LSA50.2M6 PI734B  EC043-2LN
